Measuring technology
Submikron: Products » Measuring technology
Monochromatic lamp (indirect)
monochromatic light for indirect flatness checking
sodium discharge lamp
wavelength 0,6 micrometer
1 x 35 W
230 V
max. dimension of workpieces: Ø 350 mm
Monochromatic lamp (direct)
monochromatic light for direct flatness checking
sodium discharge lamp
wavelength 0,6 micrometer
1 x 35 W
230 V
dimension measuring table: 360x360 mm
Optical flat
fused silica
Ø 25-300 mm
accuracy 1/4 or 1/10 lambda
planarity one-sided or both-sided
special dimensions on request

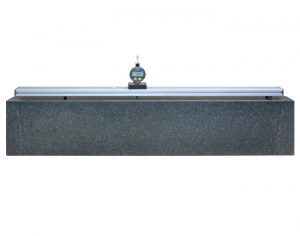

Flatness measuring gauge
available for all plate sizes
digital gauge, measuring range 12,5 mm, resolution 0,001
for checking the flatness of the lapping plate
Polishing paper
improvement of roughness for optical flat measuring
dimensions: roll width 300 mm, lenght 50 m
available in different grit sizes
other dimensions on request
Polishing paper table
table for polishing paper
Granite block
reference for flatness measuring gauge
rating „00“
available sizes for all flatness measuring gauges
